15.6-inch HDMI LCD Portable Monitor HD Resolution 1920*1080 dots for Industrial Control Security Surveillance

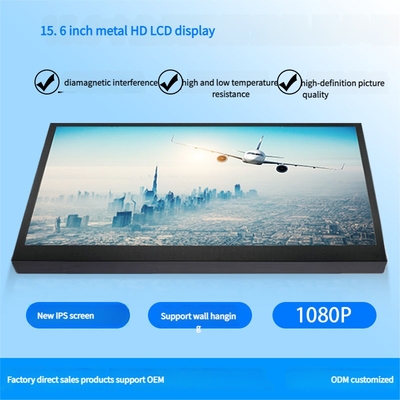

15.6-inch Metal Touchscreen Display - Full HD 1920×1080 IPS Panel,  Industrial-Grade Durability

Product Highlights - Key Features

I. Hardware Configuration and Display Performance Advantages

1. High-Definition Display
   • With a resolution of 1920*1080 (Full HD), an IPS panel, and support for 16.7 million display colors, it offers high image clarity and color accuracy, making it suitable for scenarios requiring high visual effects (e.g., industrial monitoring, commercial displays).

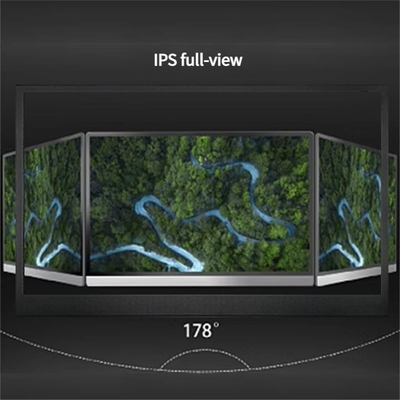

   • A contrast ratio of 800:1 and brightness of 400 cd/m² ensure clear visibility even in strong light. A viewing angle of 178°/178° allows multiple users to view the screen without color distortion.
2. Efficient Touch Experience
   • Capacitive 10-point touch technology supports direct finger operation with a response time of only 5ms, providing high sensitivity and precision for high-frequency interactive scenarios (e.g., industrial control, self-service terminals).
3. Stable Hardware Performance
   • Powered by DC 12V 1A with a complete machine power consumption of only 10W, it is energy-efficient and compatible with various power environments. LED backlight technology extends service life and reduces heat generation.

II. Structural and Industrial Design Advantages

1. Metal Construction and Durability
   • The metal housing is more wear-resistant and impact-resistant than plastic, making it ideal for high-frequency use in industrial environments or outdoor scenarios, enhancing product durability.
   • Dimensions of 363*226*36mm and a net weight of 1.45kg balance portability and structural strength.
2. Flexible Installation Options

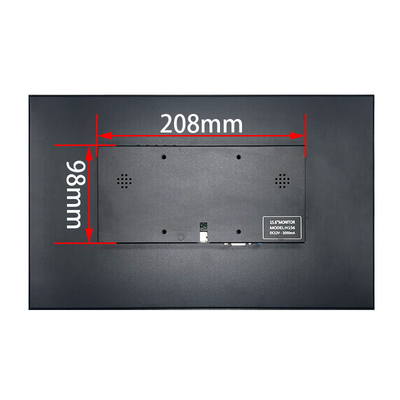

   • Supports both wall-mounted (wall mounting hole size 75×75mm) and desktop installation, adapting to different scenarios (e.g., equipment embedding, desktop placement) with high installation flexibility.
3. Wide Temperature Operation
   • Operates in temperatures ranging from -10°C to 60°C and humidity ≤80%, ensuring stable performance in low-temperature, high-temperature, or humid environments, suitable for industrial workshops and outdoor equipment.

III. Interface and Compatibility Advantages

1. Rich Interface Configuration

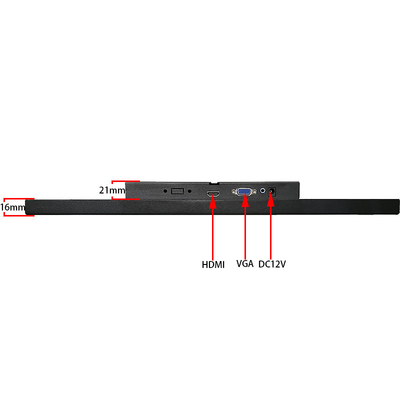

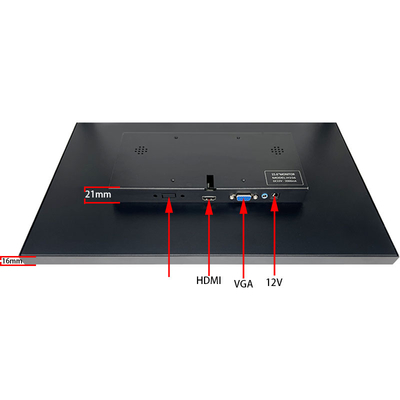

   • Features HDMI and VGA input interfaces, compatible with mainstream video devices (e.g., computers, industrial control hosts);  a DC power jack for standard adapters, ensuring strong interface versatility.
   • Optional interfaces (VGA, HDMI, USB, DC) support customized expansions to meet specific requirements of different industries.
2. Multi-Industry Adaptability
   • Suitable for industrial, commercial, and household applications, such as:
     • Industrial: As control panels for machine tools or displays for automation equipment;
     • Commercial: For advertising machines, self-service kiosks, retail terminals;
     • Household: As secondary screens or multimedia terminals.

Product Parameters


Unit: mm

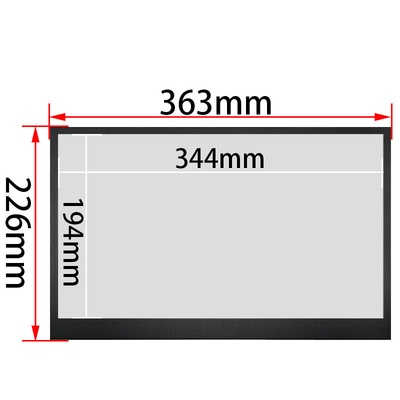

Mechanical Outline Drawing

Product Details




Use Cases

Industrial control and automation scenarios

• Workshop equipment monitoring: Due to its industrial applicability and an operating temperature range of -10°C to 60°C, it can adapt to the complex environment of factory workshops. Workers can use the monitor to view real - time operating parameters and status information of production equipment. The 10 - point capacitive touch function enables them to conveniently operate and control the equipment, and adjust the operating status of the equipment in a timely manner, thereby improving production efficiency and quality.
• Automated production line operation: Its wall - mounted and desktop installation methods make it easy to deploy at different positions on the production line. By connecting to the control system through VGA, HDMI and other interfaces, operators can use finger touch to program, debug and monitor the production line to ensure the stable operation of the production line.

Commercial display and interactive scenarios

• Mall guidance and display: In shopping malls and shopping centers, it can be used as a product display and guidance device. With a resolution of 1920 * 1080, a display brightness of 400 (cd/m²) and a viewing angle of 178°/178°, it can clearly display product information, promotional videos and other content to attract customers' attention. The 10 - point capacitive touch function allows customers to independently query product details, store locations, etc., providing a good interactive experience.
• Restaurant ordering system: It is suitable for use as an ordering device in restaurants. Merchants can display the menu on the monitor in an intuitive and vivid form. Customers can select dishes, add remarks, etc. by touch, improving the ordering efficiency and reducing the workload of waiters.

Home entertainment and office scenarios

• Home theater: At home, it can be used as a display device for a small home theater. The HDMI interface makes it easy to connect to TV boxes, game consoles and other devices. The 16:9 screen ratio and high resolution can present an excellent visual effect, bringing an immersive viewing and gaming experience to users.
• Daily office work: It can be used as a computer monitor to meet daily office needs. The 10 - point capacitive touch function facilitates users to operate documents, draw by touch, etc., improving the convenience and efficiency of office work. Especially for users who need to frequently perform graphic processing, handwritten annotations and other tasks, it can better play its advantages.

Package Contents

• 1x 15.6-inch Touch Portable Monitor
• 1x USB-C to USB-C Cable (for power/video)
• 1x HDMI to HDMI Cable
• 1x Power Adapter (12V/1A)
• 1x User Manual
